Aluminum Entrance Matting Systems: A Technical Guide for Commercial Buildings

Key Takeaways

• Aluminum entrance matting combines a durable aluminum framework with functional inserts for commercial entrance flooring.

• Choose carpet, rubber, brush, or combination inserts according to dirt, moisture, traffic, and the role of each entrance zone.

• Recessed, surface-mounted, and ramped systems suit different building and installation conditions.

• Architects and contractors should consider dimensions, traffic, floor levels, accessibility, insert configuration, and maintenance during specification.

• Facility managers should evaluate cleaning, replaceable inserts, durability, and total lifecycle costs, not just the initial purchase price.

Introduction

A commercial entrance does more than welcome visitors. It is the point where dust, grit and moisture move from the outside environment into the building. A properly designed aluminum entrance matting system helps control these contaminants before they reach the main flooring.

Unlike a conventional doormat, aluminum entrance mats combine a structural aluminum framework with functional inserts. This makes them extremely useful for high-traffic businesses such as offices, hotels, hospitals, retail stores, and shopping malls.

Seasonal changes in India can impact the types of systems built as well as the types of matting systems. The right specification therefore depends on the building, entrance conditions and expected traffic rather than simply choosing a metal mat based on appearance.

This guide explains how aluminum entrance matting works, which insert and installation options are available, and what architects, contractors and facility managers should consider when specifying a system.

Table of Contents

1. What Is an Aluminum Entrance Matting System?

2. Why Use Aluminum Entrance Mats in Commercial Buildings?

3. Choosing the Right Aluminum Mat Insert

4. Recessed vs Surface-Mounted Aluminum Entrance Matting

5. How Architects Should Specify Aluminum Entrance Flooring

6. Contractor Guide to Aluminum Matting Installation

7. Aluminum Matting and Facility Management

8. BIS Standards and Safety Considerations

9. How to Choose the Right Aluminum Entrance Matting System

10. Frequently Asked Questions

11. Conclusion

What Is an Aluminum Entrance Matting System?

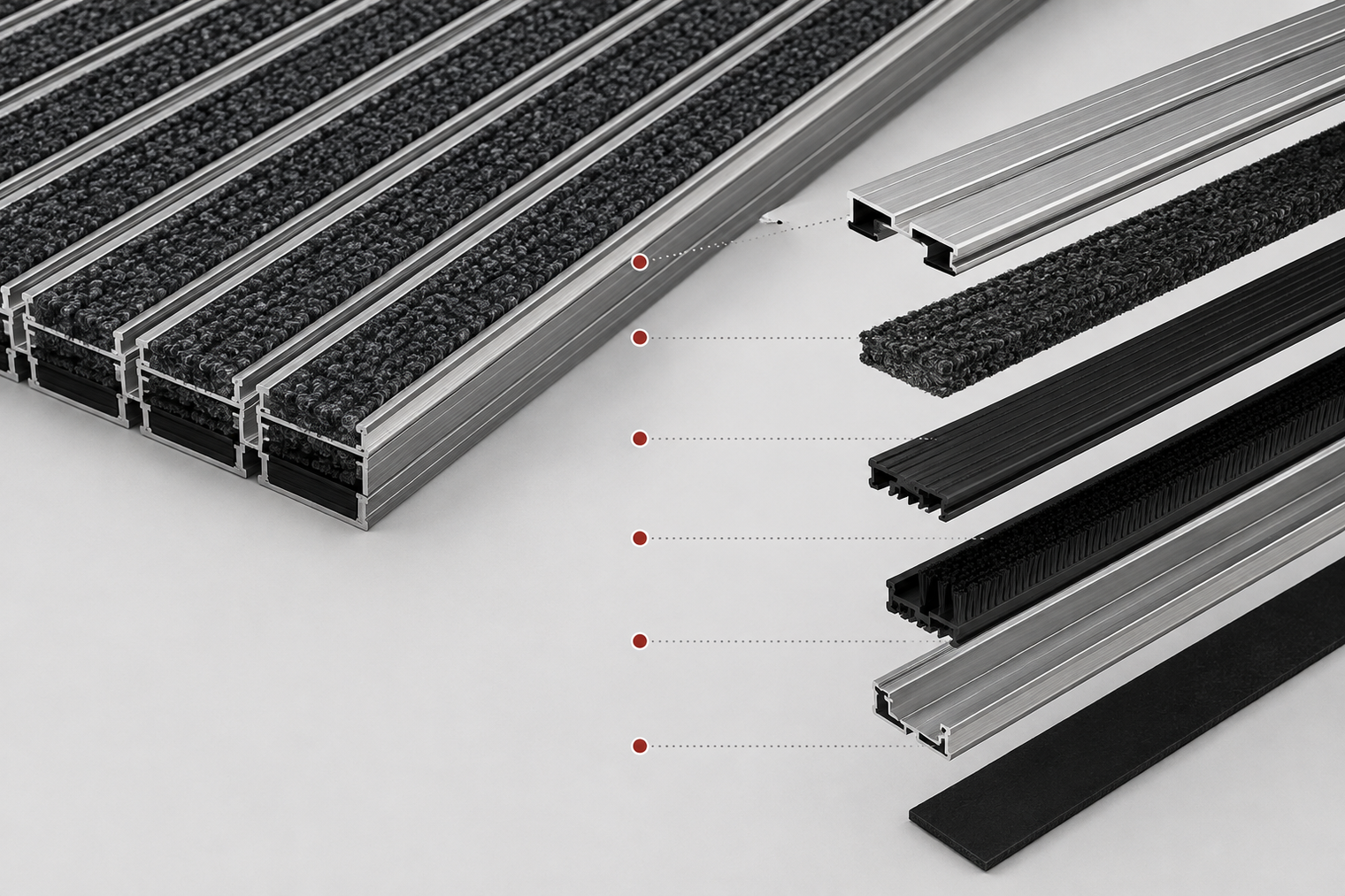

An aluminum entrance matting system is a modular entrance flooring solution made from aluminum sections and removable mat inserts. The aluminum frame provides the structure of the system, whereas the various inserts perform functions such as scraping, wiping, and moisture absorption.

The important distinction is that this is a complete entrance flooring system, not simply a metal doormat. These systems incorporate top and bottom track systems where rain-, snow-, and dirt-accumulating inserts can be interchanged. The primary distinction is that these are complete entrance flooring systems, not aluminum metallic mats.

For example, Ultimats' UltiGrate system uses 6063T6 aluminum sections, replaceable inserts, open spaces between sections to allow removed dirt to fall through, a TPR anti-skid base, and a rollable design. Its listed section height is 10.5mm.

The aluminum frame alone does not determine performance. Insert selection, traffic level, load conditions, installation, entrance dimensions, and maintenance all influence the finished system.

Why Use Aluminum Entrance Mats in Commercial Buildings?

Commercial buildings experience considerably more foot traffic than most homes. A small entrance mat can quickly become overloaded with dirt and moisture when hundreds of people use the same doorway every day.

A properly specified aluminum system can offer:

• Durable construction for demanding entrances

• Replaceable mat inserts

• Custom sizing

• Multiple insert configurations

• Recessed or surface-mounted installation

• A professional appearance

• Easier long-term component replacement

Ultimats lists applications for its aluminum system across demanding environments such as offices, malls, hotels, hospitals, schools, airports, and public buildings.

For facility managers, the modular design is particularly useful because the working inserts can be replaced independently of the aluminum framework when the selected system allows it.

Technical Specification: What Should You Check?

For a commercial project, don't specify an aluminum entrance mat only by its material. Check the complete system specification.

Anti-skid base Helps improve system stability

Always use the manufacturer's current technical specification for product-specific dimensions, traffic ratings, and load requirements rather than assuming that every aluminum system has the same performance.

Choosing the Right Aluminum Mat Insert

The insert is the working surface of the entrance system. Choosing it should therefore start with the type of contamination and traffic the entrance experiences.

Carpet Inserts

Carpet inserts are generally suited to wiping and retaining finer dirt and moisture. They can be particularly useful in interior entrance zones where appearance and moisture control are important.

Rubber Inserts

Rubber inserts have scraping surfaces and may be appropriate for entrances with a significant amount of soil.

Brush Inserts

Brush inserts are used to engage footwear and remove coarser materials from footwear.

Combination Inserts

For demanding commercial entrances, combining insert types can create a more complete entrance flooring system. For example, a scraper-focused zone can be followed by a carpet-based wiping zone.

The best configuration depends on the entrance rather than on a single universally superior insert.

Recessed vs Surface-Mounted Aluminum Entrance Matting

The installation method should be decided early, particularly when the entrance is part of a new building or major renovation.

Ultimats offers aluminum matting for recessed matwells, surface installation with a ramp frame, and loose-laid installation with two-sided ramping.

Recessed Installation

A recessed entrance mat sits within a prepared matwell so that the finished system integrates with the surrounding floor. This can provide a cleaner transition and is often considered during the architectural and flooring specification stage.

Surface-Mounted Installation

A surface-mounted system is installed above the existing floor. Because it changes the floor level, the edges and transition need to be considered carefully, particularly in accessible entrances.

How Architects Should Specify Aluminum Entrance Flooring

For an architect's specification, choosing an aluminum entrance mat should involve more than stating the material.

Consider:

1. Entrance dimensions: Determine the required width and walking length.

2. Traffic level: Estimate pedestrian and trolley movement.

3. Contaminants: Identify whether dust, grit, mud, or moisture is the main concern.

4. Insert configuration: Match carpet, rubber, brush, or combination inserts to the application.

5. Installation: Confirm whether recessed or surface installation is practical.

6. Finished floor level: Ensure the mat integrates correctly with adjacent flooring.

7. Accessibility: Avoid unnecessary level changes or unstable transitions.

8. Maintenance: Specify how inserts will be cleaned and replaced.

The National Building Code addresses accessibility and other building requirements, while project teams must also examine local requirements and current standards for the particular building.

Contractor Guide to Aluminum Matting Installation

For contractors, accurate preparation is critical.

Step 1: Measure the Entrance

Confirm the finished dimensions, available recess, and intended walking direction.

Step 2: Confirm Floor Levels

The finished aluminum mat should integrate properly with the surrounding flooring.

Step 3: Prepare the Matwell or Transition

For recessed systems, prepare the matwell according to the manufacturer's installation requirements. For surface systems, plan the appropriate transition or ramp.

Step 4: Install the Aluminum Framework

Position and secure the framework correctly before fitting the inserts.

Step 5: Fit the Inserts

Install the specified carpet, rubber, brush, or combination inserts according to the system configuration.

Step 6: Check the Finished Transition

Inspect the entrance for movement, stability, and accessibility before handing over the installation.

This final check matters because an entrance flooring system should not become an obstacle for pedestrians, wheelchairs, luggage, or other wheeled equipment.

Aluminum Matting and Facility Management

For facility managers, the purchase price is only one part of the cost.

A better assessment considers cleaning, insert replacement, durability, downtime, and long-term floor protection.

A modular aluminum system can simplify maintenance because worn inserts can be replaced separately from the framework. Ultimats specifically describes its UltiGrate inserts as replaceable.

Routine maintenance should include:

• Removing accumulated dirt

• Cleaning inserts according to their material

• Inspecting the aluminum frame

• Checking edges and transitions

• Replacing damaged or worn inserts

• Monitoring high-traffic areas

The maintenance schedule should reflect actual foot traffic and environmental conditions rather than following a one-size-fits-all timetable.

BIS Standards and Safety Considerations

There is no BIS standard for aluminum entrance mats, so one may simply refer to it as the BIS standard. When discussing accessibility, IS 4963:2024 states that internal floor surfaces should not create barriers to users in wheelchairs, and that if a mat is provided, it should be level with the floor surface. It states that recessed foot mats are preferable.

This makes floor integration an important specification issue. A technically strong aluminum mat can still create a practical problem if it is installed with an unsuitable level transition.

How to Choose the Right Aluminum Entrance Matting System

Use this simple process when selecting a system for a commercial building:

1. 1. Assess traffic: Determine pedestrian and trolley usage.

2. Determine the contaminants: Determine if the main concern is dust, grit, mud, moisture, or a combination.

3. Select the inserts: Determine if you require a scraping, wiping, or drying function.

4. Decide on the installation method: Consider ramped, recessed, or surface-mounted installations.

5. Check dimensions: Ensure an entry mat extends to cover the entire entry.

6. Think about maintenance: Confirm how easy it is to remove and replace inserts and how they can be cleaned.

7. Consider the project requirements: Verify floor levels, accessibility, the building, and its requirements.

The goal is not simply to select the strongest metal entrance mat. It is to create an entrance flooring system in which the frame, inserts, dimensions and installation method work together.

Conclusion

A good aluminum entrance matting system is a combination of the right frame, inserts, size, and installation method. For commercial buildings, the selection should begin with traffic, contaminants and floor conditions rather than appearance alone.

Architects should address the system during building specification, contractors should plan the installation and floor transition carefully, and facility managers should consider cleaning and replacement over the system's working life.

For a broader comparison of residential and commercial solutions, see the Complete Guide to Entrance Matting: Residential vs Commercial Systems.

Frequently Asked Questions

What are aluminum entrance mats used for?

Aluminum entrance mats are used to create durable entrance flooring systems that help remove dirt and moisture from footwear. They are particularly suitable for commercial and high-traffic buildings.

Are aluminum entrance mats suitable for high-traffic buildings?

Yes. Aluminum systems can be specified for demanding commercial environments when the frame, inserts and installation method are matched to the expected traffic and conditions.

What is the difference between recessed and surface-mounted entrance matting?

A recessed system sits inside a prepared matwell, while a surface-mounted system sits above the existing floor and normally requires an appropriate ramp or edge transition.

Which insert is best for aluminum entrance mats?

There is no single best insert. Brush and rubber inserts can support scraping, while carpet inserts are generally useful for wiping and moisture retention.

Can aluminum mat inserts be replaced?

Yes. Modular systems can allow worn inserts to be replaced without replacing the complete aluminum framework. Ultimats specifically offers replaceable inserts for its UltiGrate system.
